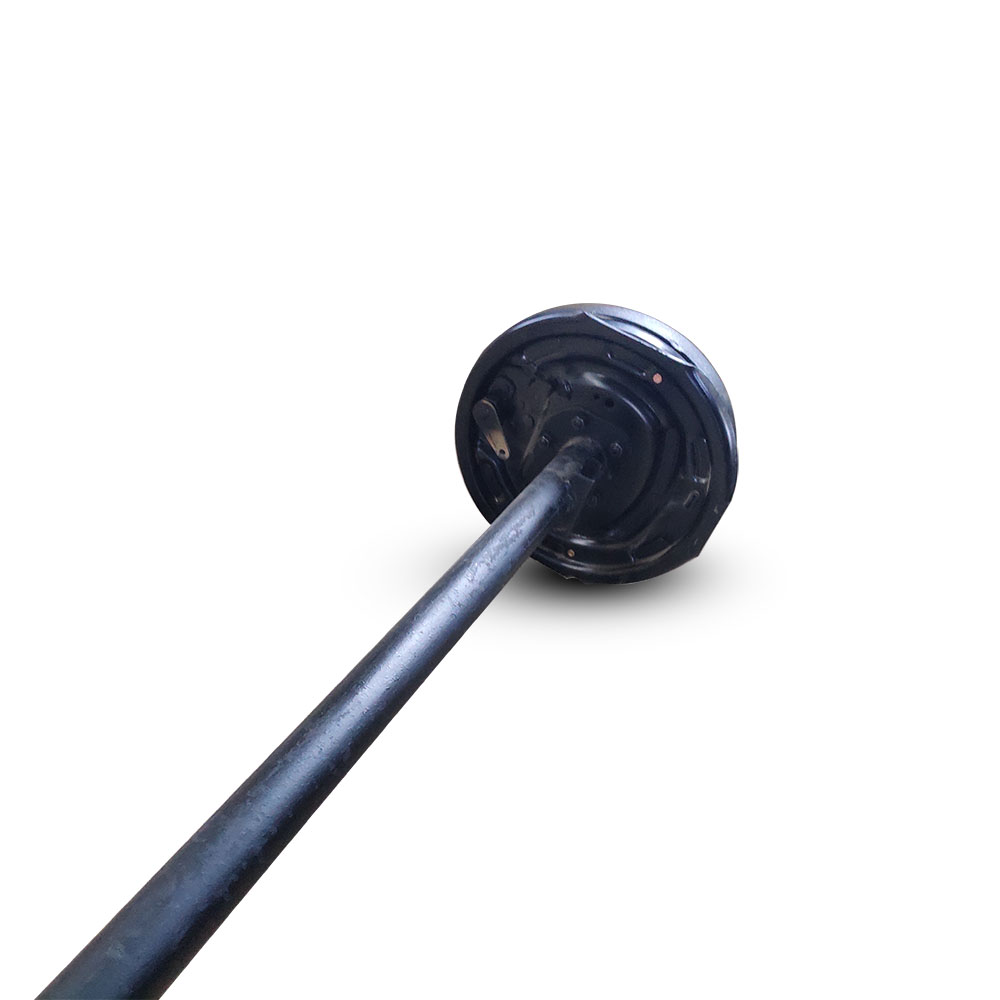

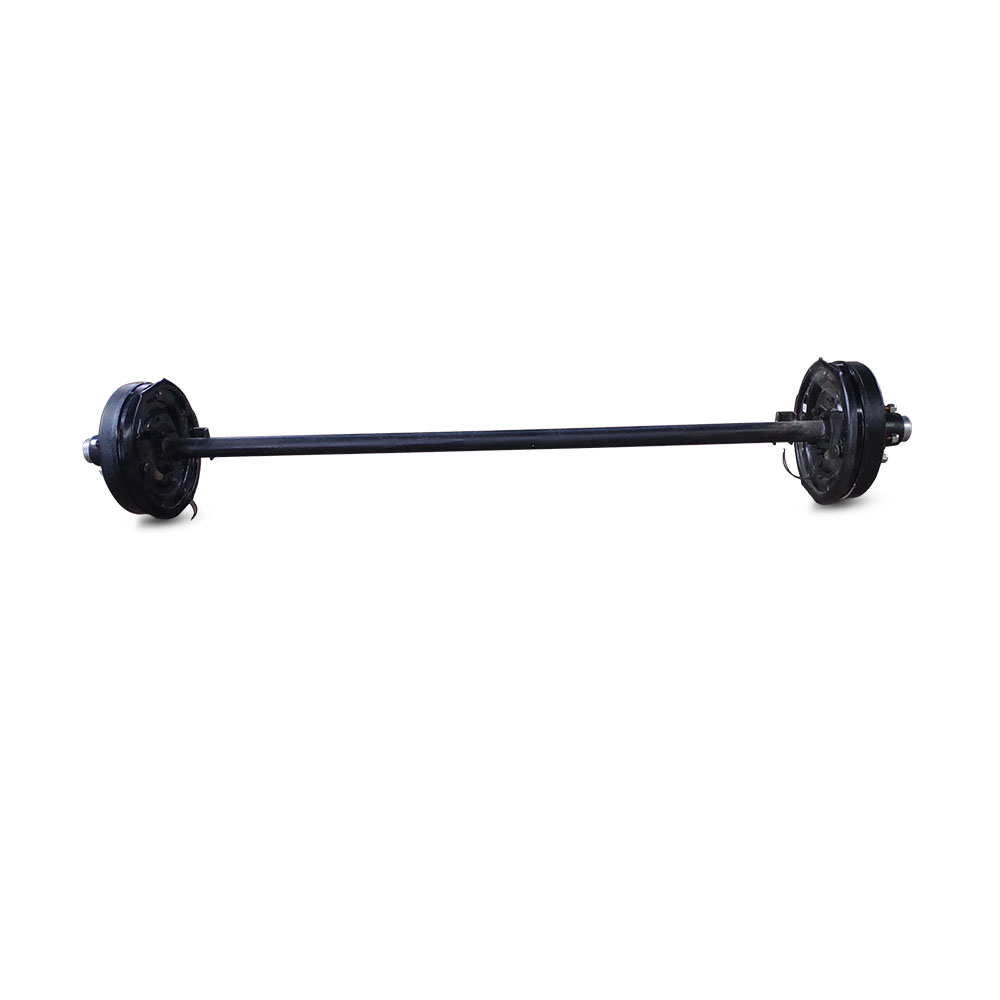

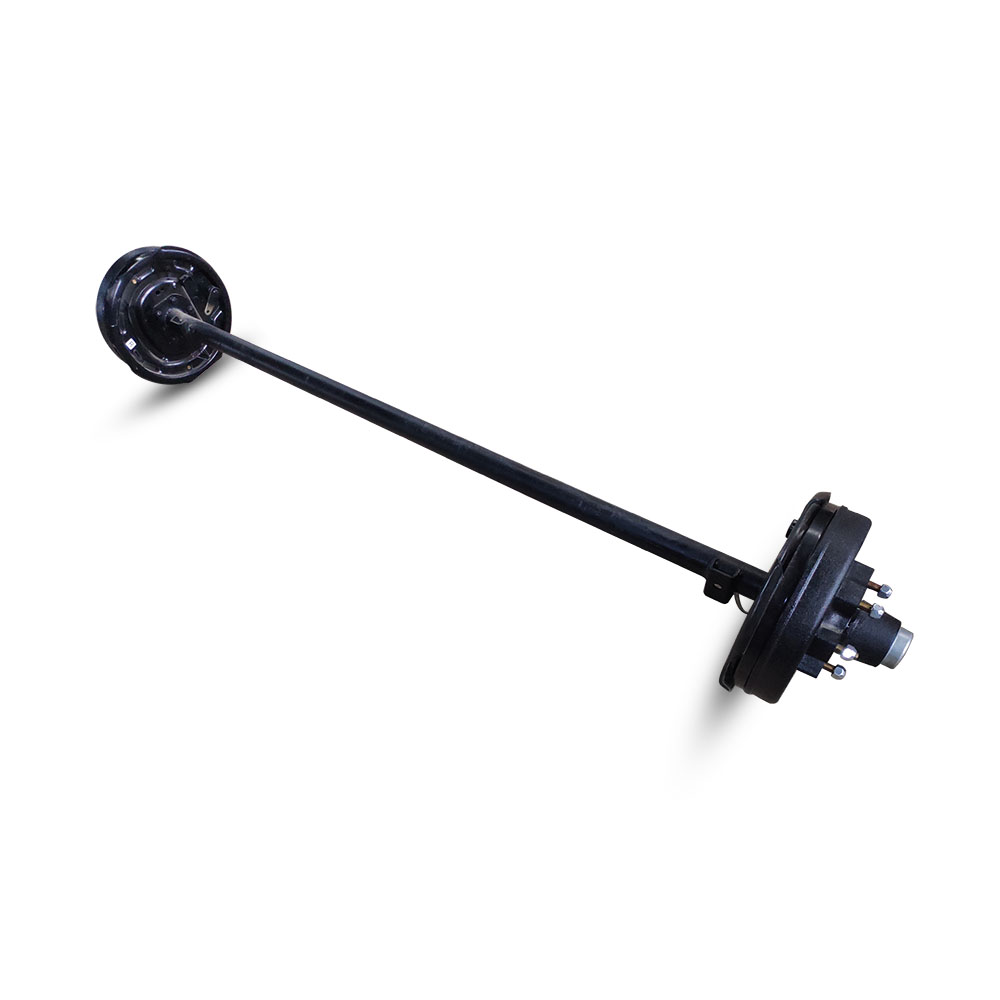

12 Inch 6 Bolts Electric Drum Brake Axle
Use: Trailer Parts
Parts: Trailer Axles
Port: Qingdao, China
Delivery Time: 35 days
Min. Order: 100 Piece/Pieces
Payment Type: D/P, D/A, T/T, MoneyGram, Paypal, etc.
Parameters:
| NO. | Description | QTY | Option 1 | Option 2 | Option 3 |
|---|---|---|---|---|---|
1 |
axle shaft |
1 |
50mm Rd / Sq solid |
60mm Rd / Sq solid |
76*6mm round tube |
2 |
mounting plate |
2 |
ATO1200105 |
AT01200110 |
|
3 |
12" brake plate |
2 |
QC011L/R |
QC025L/R |
QC003L/R |
4 |
bolt, washer & nut |
8 |
AC00100501/2/3 |
||
5 |
oil seal |
2 |
AC00200400 |
ATO1700302 |
|
6 |
inner bearing |
2 |
25580/20 |
||
7 |

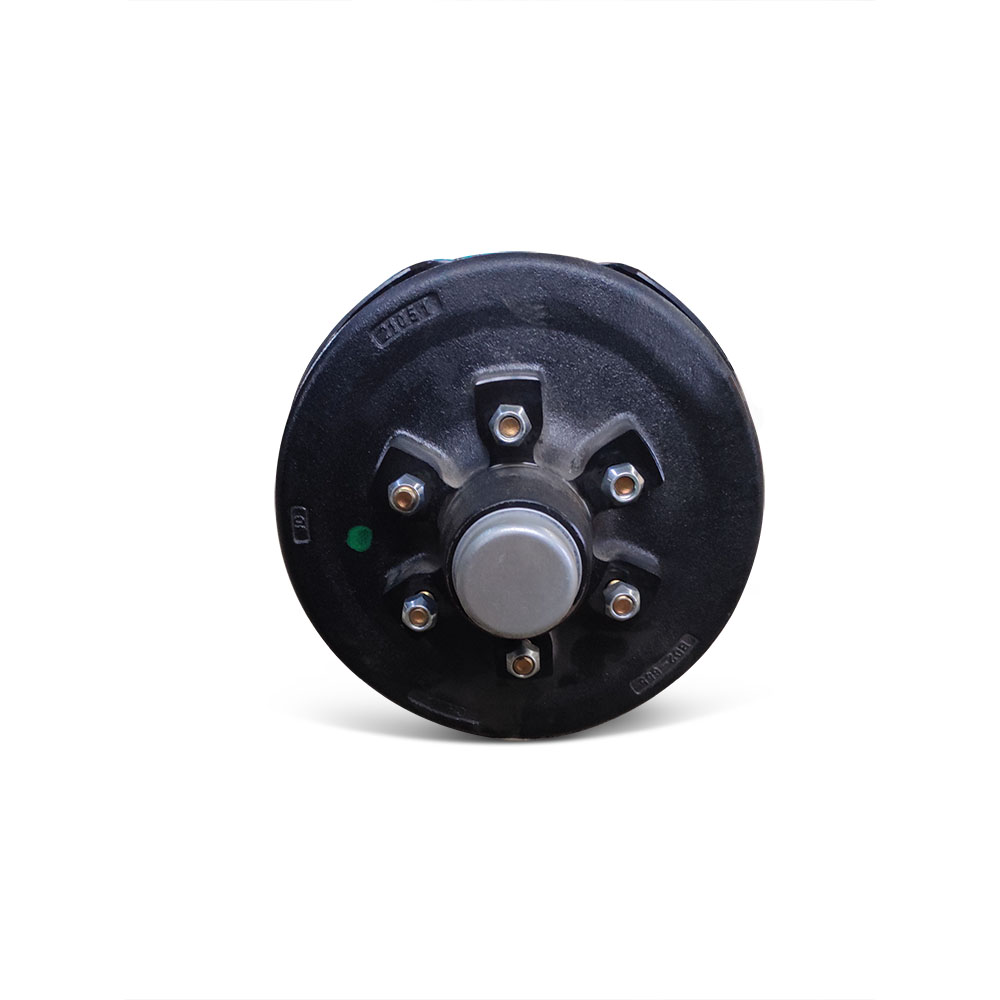

12" hub drum |
2 |
AC00200300 |
AC00200300C |
|
8 |
wheel nut |
12.16 |
1/2"-10UNF |
||
9 |
outer bearing |
2 |
15123/45 |
14125A/76 |
|
10 |
flat washer |
2 |
AC00201001 |
||
11 |
castle nut |
2 |
AC00200701 |
||
12 |
split pin |
2 |
AC00200404 |
||
13 |
dust cap |
2 |
AC00200601 |
AC00200601B |
