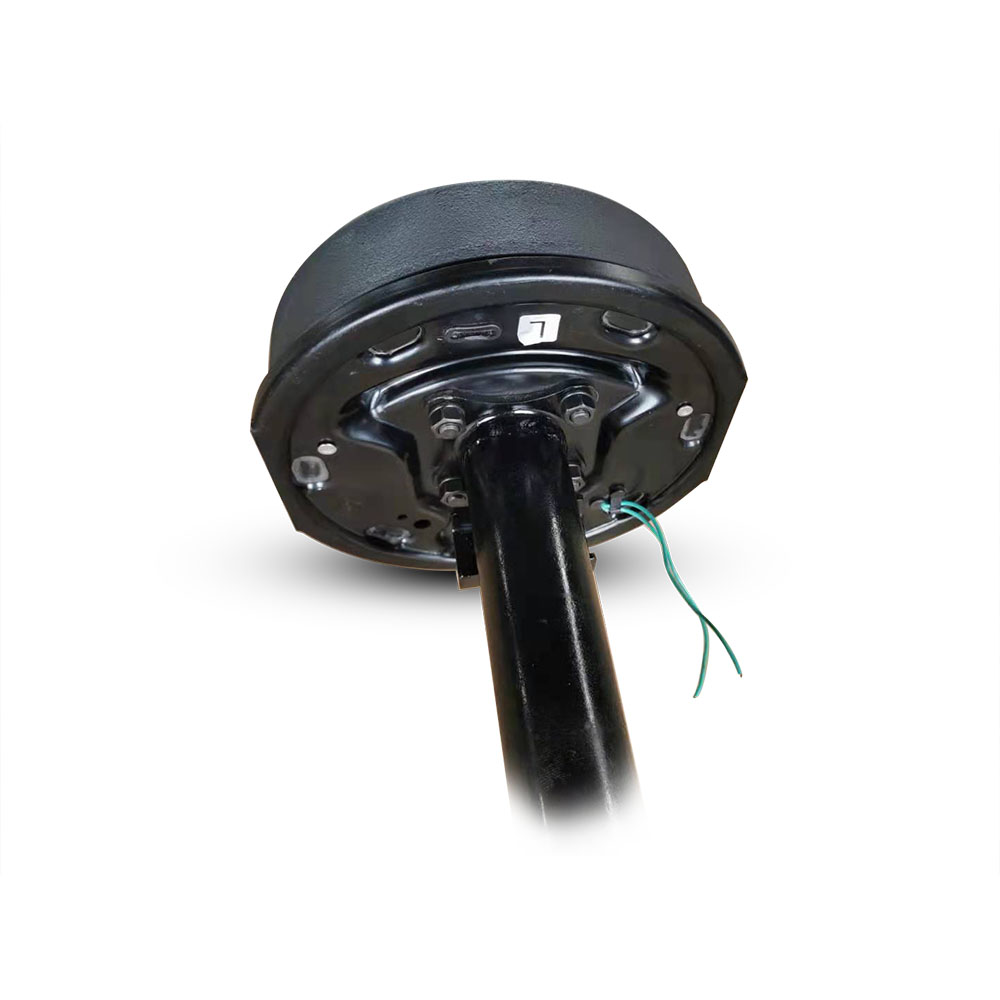

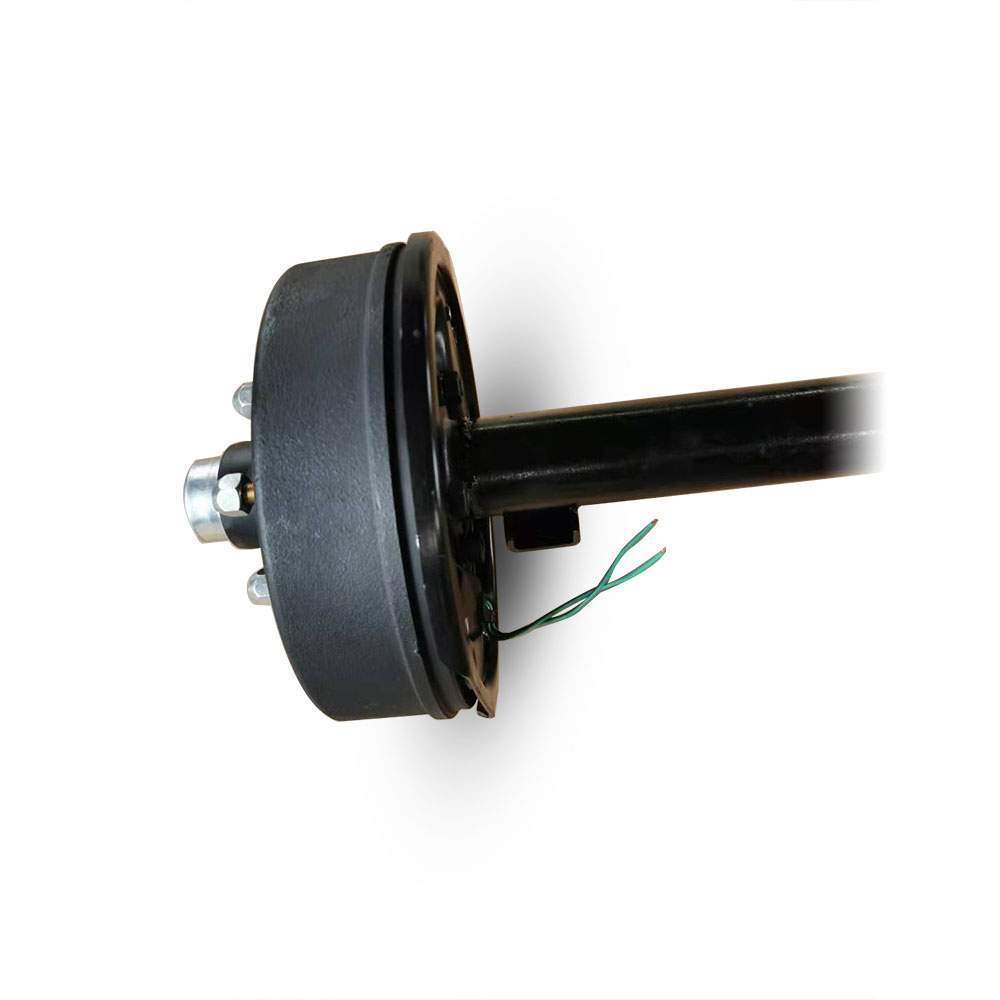

10 Inch 5 Bolts Electric Drum Brake Axle
Use: Trailer Parts
Parts: Trailer Axles
Port: Qingdao, China
Delivery Time: 35 days
Min. Order: 100 Piece/Pieces
Payment Type: D/P, D/A, T/T, MoneyGram, Paypal, etc.
Parameters:
| 5* 4.5" wheel bolts pattern | |||||
| NO. | Description | QTY | Option 1 | Option 2 | Option 3 |
|---|---|---|---|---|---|
1 |
axle shaft |
1 |
60*5mm round tube |
50mm Rd / Sq solid |
|
2 |
mounting plate |
2 |
ATO1200107 |
||
3 |
10" brake plate |
2 |
QC004UR |
QC013L/R |
QC026L/R |
4 |
bolt, washer & nut |
8 |
AC00100501/2/3 |
||
5 |
oil seal |
2 |
AC00300201 |
||
6 |
inner bearing |
2 |
L68149/11 |
||
7 |
10" hub drum |
2 |
AC00300300 |
||
8 |
wheel nut |
10 |
1/2"-10UNF |
||
9 |
outer bearing |
2 |
L44649/10 |
||
10 |
flat washer |
2 |
AC00201001 |
||
11 |
castle nut |
2 |
AC00200701 |
||
12 |
split pin |
2 |
AC00200404 |
||
13 |
dust cap |
2 |
AC00300601 |
||
